PRODUCTSTaian, according to customer needs to produce the products you need!

GZL series… GZL series dry rolling granulator adopts dry extrusion technology to compress powdery materials with water content less than 10% into flakes, and then through crushing, whole granulation and screening process, the flake and block materials can be turned into granular materials meeting the use requirements. Dry rolling granulation mainly relies on external pressure to make the particles strong
ZLG series… ZLG vibrating fluidized bed dryer is widely used in chemical industry, light industry, medicine, food, plastic, grain and oil, slag, salt, sugar and other industries for drying, cooling, humidifying and other operations.
LPG series… Spray drying is a widely used technology in liquid forming and drying industry. It is suitable for producing powdery and granular solid products from solution, emulsion, suspension and paste liquid raw materials. Therefore, when the particle size distribution, residual water content, bulk density and particle shape of finished products must conform to the exact standard, spray drying is a very ideal process.

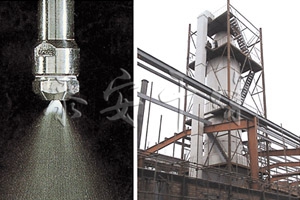

YPG series… The pressure type spray drying granulator is a device which uses pressure atomizer to atomized liquid or slurry material into tiny droplets by means of pressure of diaphragm pump, so that the surface area is significantly increased. It can be quickly dried (ten seconds to tens of seconds) by hot exchange with hot air to obtain powder or fine particle products.
ZYG series… The machine adopts fully enclosed form, all parts are made of stainless steel, equipped with three-stage purification device, the filtered air reaches 100000 level requirements. The cold wall device is installed on the cylinder body and the top, so that the wall temperature is less than 80 ℃, and the material does not coking on the wall, which greatly increases the powder collection rate (more than 95%), and does not produce the phenomenon of mixing and sticking to the wall.
JYG Series… The product can indirectly heat or cool paste, granule, powder and paste materials, and can complete the unit operation of drying, cooling, heating, sterilization, reaction, low temperature combustion, etc. The special wedge-shaped agitated heat transfer blade in the equipment has high heat transfer efficiency and self-cleaning function of heat transfer surface.
GFG series… After being heated and purified, the air is introduced from the bottom by the induced draft fan and passes through the hole plate of the hopper. In the working room, the fluidization is formed by stirring and negative pressure, and the water is evaporated quickly and taken away with the exhaust gas, and the materials are dried quickly.
FG series … This machine is mainly used for drying powder or granular materials in medicine, food, chemical industry and other industries. It has the advantages of fluidization drying, fast heat and mass transfer, no dust flying under closed negative pressure, anti static electric filter material, safe operation;
XF series … Boiling drying, also known as fluidized bed, is composed of air filter, heater, main machine of fluidized bed, cyclone separator, bag filter, high-pressure centrifugal fan and operating platform. Due to the different properties of drying materials, when supporting dust removal equipment, it can be considered as required. Cyclone separator, bag filter, or one of them can be selected at the same time. Generally speaking, the specific gravity is relatively large For example, only cyclone separator is needed for the drying of granules and granular materials. Bag filter is needed for small granular and powdery materials with light specific gravity, and pneumatic feeding device and belt conveyor are provided for selection.
DW series … This machine is a cross flow continuous drying equipment, which is used for drying of sheet, strip and granular materials with good air permeability. It is especially suitable for dehydrated vegetables, traditional Chinese medicine pieces and other materials with high moisture content, but the temperature is not allowed to be high. This series of dryer has the advantages of fast drying speed, high evaporation intensity and good product quality. For dehydrated filter cake like paste materials, granulation or preparation is required It can also be dried after forming rod.

Gzl800 series dry rolling granulator

GZL series dry rolling granulator adopts dry extrusion technology to compress the powdery material with water content less than 10% into pieces, and then through crushing, whole grain and screening process, the pieces and blocks of material can be turned into granular material meeting the use requirements.

Chicken essence production line

The material enters the machine from the feeding port of the vibration fluidized bed dryer of the chicken essence production line. Under the action of the vibration force, the material is thrown forward continuously along the horizontal direction. After the hot air passes through the fluidized bed to exchange heat with the wet material, the wet air is discharged from the outlet after dust removal by the cyclone separator, and the dry material is discharged from the outlet.

High speed mixer for chicken essence production line

Zgh type high-speed mixer of chicken essence production line is a high-speed mixer specially developed for powder mixing, which solves the technological problem of mixing various powder raw materials into wet materials with water in food, pharmaceutical and other industries for many years. Before, most manufacturers used trough mixer, v-mixer, two-dimensional mixer, three-dimensional mixer and other mixing equipment, but they all have the common problems of long mixing time, uneven mixing, small reunion and more small pieces. The products made have different color difference, taste and component content, which makes the product quality unstable and the appearance not beautiful.

Fertilizer engineering production line

Fertilizer dryer is a kind of equipment which is developed on the basis of traditional net belt dryer, which has strong pertinence, practicability and high energy efficiency. When we manufacture equipment for users, we design and manufacture suitable for users according to the characteristics of the required dry products, user process requirements and the accumulated experience in decades.

Disc dryer for potassium sulfate

Colorless or white crystals, granules or powders. No smell. It tastes bitter. It's hard. Stable in air. 1g is soluble in 8.3ml water, 4ml boiling water and 75ml glycerol, but insoluble in ethanol. Potassium chloride and ammonium sulfate can increase their solubility in water, but they are almost insoluble in saturated ammonium sulfate solution. The aqueous solution is neutral and pH is about 7.

Qingdao Hongxing group orders rotary flash dryer production line

XSG series rotary flash dryer is a new type of drying equipment successfully developed by our factory on the basis of introducing and absorbing foreign advanced technology. The machine has advanced technology, reasonable design, compact structure, wide application range, large production capacity, good product quality, high efficiency, energy saving, and can be dried, crushed, dried in one equipment
